Description

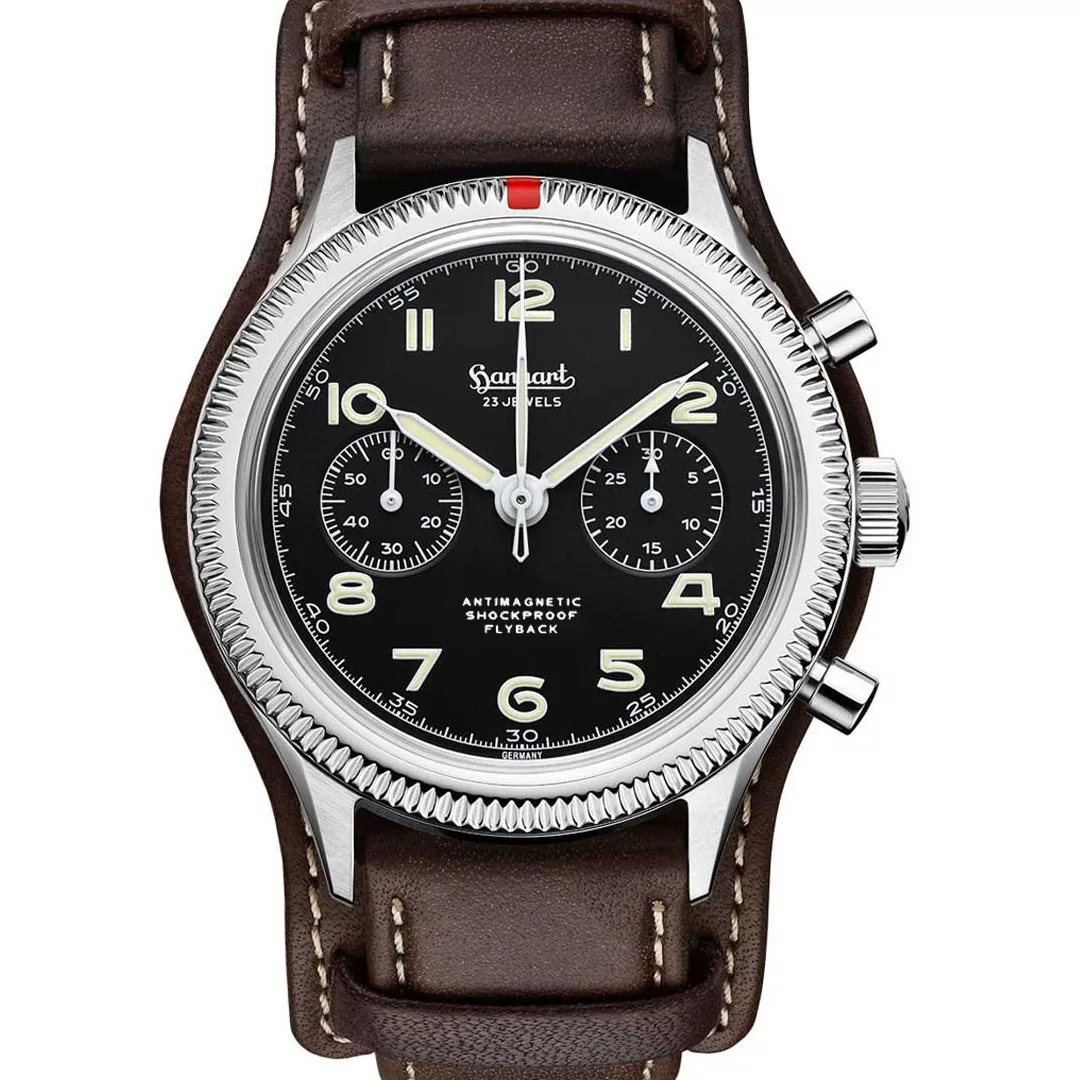

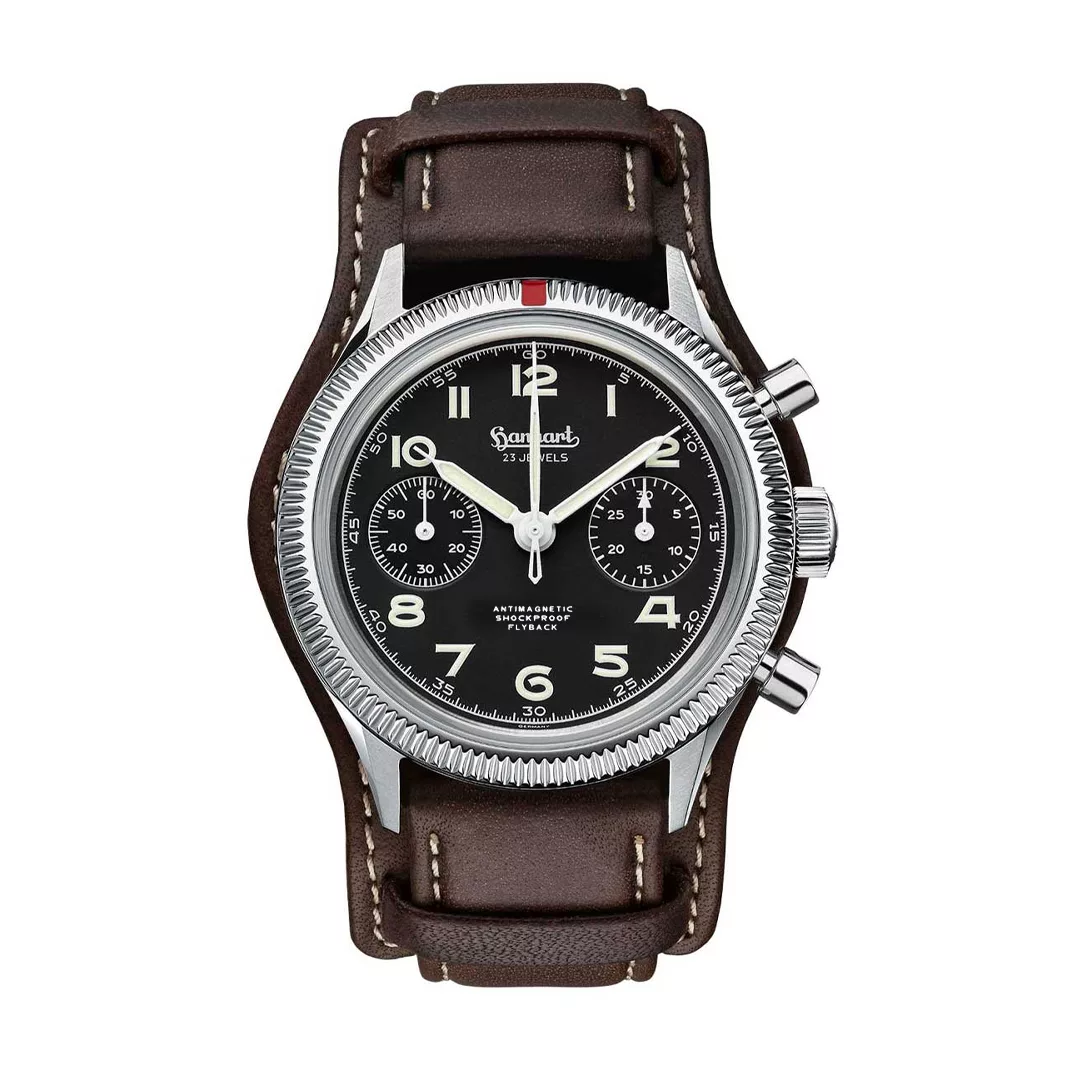

Hanhart 417 ES 1954 Flyback (custom-made)
H701.210 Flyback
Lovers of traditional timing keeping complications and Hanhart’s classic 417 ES collection now have the best of both worlds with the inclusion of a flyback complication on the 39mm 417 ES 1954 model, equipped with Hanhart’s manual-winding flyback calibre with an integrated column wheel.
The importance of the 417 ES
The re-release of Hanhart’s legendary 417 ES model range marked the beginning of a success story. Following the relaunch of the 417 ES 42mm model, Hanhart introduced the classic 417 ES 1954 in a 39 mm case – the same size as the original on exhibition in Hanhart’s museum.
Return of the Flyback
The Flyback complication pays tribute to Hanhart’s long tradition of producing chronographs and gives a nod to the company’s most popular model. In fact, the original 417 ES, designed for pilots of the German Air Force, was equipped with “Temposchaltung”, or “flyback function” as we know it. The mechanism allows immediate measurement of a new timing interval via the reset pusher. The high-grade AMT5100 M calibre responsible for precision originates from Sellita’s manufactory AMT department. It controls the chronograph via a column wheel and has a power reserve of at least 58 hours when fully wound.
As a custom-made piece the 417 ES 1954 Flyback is available in a robust 39 mm stainless-steel case with fluted bezel. The case size delivers a classic aesthetic and functionality designed to suit a wider variety of wrist sizes. This case is water resistant to 10bar (100m), and features anti-magnetic resistance up to 16,000 A/m according to DIN 8309. The dial is simple, classic and very Hanhart in terms of composition, legibility and functionality.
The 417 Es 1954 with custom flyback draws upon traditional design, optimal comfort, superb functionality and a little ‘je ne sais quoi’ that gives this piece its special characteristic and bespoke edge.
Technical details
CASE
Stainless steel, satinised/polished
Diameter 39 mm, Height with glass 13.5 mm (11,55 mm without glass)
Crown with the historic Hanhart “h”
Fluted rotating bezel, continuously rotatable, with red markings
Anti-reflective convex sapphire glass
High-domed sapphire glass
Screwed-down stainless steel case back
Water resistant to 10 bar/10 ATM according to DIN 8310
Continuous serial number
Shockproof with Hanhart movement protection
Antimagnetic up to 16.000 A/m according to DIN 8309
Engraving of the historical logo on the case back
DIAL AND HANDS
Historical Logo
Super-LumiNova® Light Old Radium coated numerals and hand
Minute and Second hand bent at tip to prevent parallax errors
STRAP
Black BUND calfskin strap with white stitching and leather underlay
Alcantara on the inside
Pin-buckle with historical logo, Lug width 20 mm
*Upgrade to Solid bracelet available
MOVEMENT
Column wheel flyback movement
Manual wound chronograph
Sellita AMT5100 M
Symmetrical button arrangement
28.800 A/h, 4 Hz, 23 jewels
Power reserve minimum 58 hours after full winding
FUNCTIONS
Flyback
Small second
30-minute counter
Bicompax Chronograph with central stop-second
